NeoPerm Permanent Monitoring System
NeoPerm Permanent Monitoring System
Silicon-Sapphire
The NeoSapphire electronic downhole gauges are designed
with low costs and easy to use as the main criteria.
Sensor Type
- Silicon-Sapphire
- Quartz
Pressure > Ranges
- Up to - 30,000 PSI.
Pressure > Accuracy
- ±0.03% (full scale).
- ±0.015% (full scale).
Pressure > Resolution
- 0.0003%.
Pressure > Drift
- <3 psi / year.
Temperature > Rating
- 125oC / 150°C / 177°C/200°C
Temperature > Accuracy
- ±0.5°C
- ± 0.15oC
Temperature > Resolution
- 0.01°C
Communications
- USB/RS232
Power Source
- One 1/2 AA lithium pack
Memory Capacity
- 1M data sets
Data Set Contents
- Time / pressure / temperature
Sample Rate
- 0.1 second to any longer period
Outside Diameter
- 0.75”(19.1mm)
Overall Length
- 8” (203 mm))
- 15”(381 mm)
Housing Material
- Inconel 718 / Stainless Steel 17-4
Sealing
- H2S or other sour Conditions
Display Mode
- liquid crystal
Work mode
SRO
About

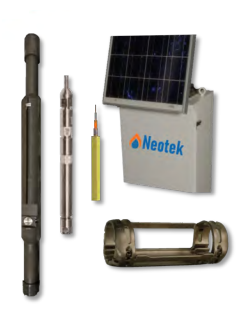

The NeoPerm permanent gauge system is designed to monitor downhole reservoir pressure and temperature in production optimization and management of oil and gas assets. Customers can choose either single gauge single channel or multi-gauge multi-channel configurations. The real-time downhole data can be stored in a surface box at well sites or/and can be transmitted to remote locations.
In order to accommodate different applications and budgets, system components such as gauge transducers, cable types, and gauge carriers should be designed case by case in order to optimize energy resources and economical outcomes.
