NeoShort 4.8” Long Memory Gauge
NeoShort 4.8” Long Memory Gauge
Silicon-Sapphire
The NeoSapphire electronic downhole gauges are designed
with low costs and easy to use as the main criteria.
Sensor Type
- Silicon-Sapphire
Pressure > Ranges
- Up to - 15,000 PSI.
Pressure > Accuracy
- ±0.03% (full scale).
Pressure > Resolution
- 0.0003%.
Pressure > Drift
- <3 psi / year.
Temperature > Rating
- 150°C(302°F)
Temperature > Accuracy
- ±0.5°C
Temperature > Resolution
- 0.01°C
Communications
- USB/RS232
Power Source
- One 1/2 AA lithium pack
Memory Capacity
- 1M data sets
Data Set Contents
- Time / pressure / temperature
Sample Rate
- 0.1 second to 18 hours per sample
Outside Diameter
- 0.75”(19.1mm)
Overall Length
- 4.8” (122mm)
Housing Material
- Inconel 718 / Stainless Steel 17-4
Sealing
- H2S or other sour Conditions
About

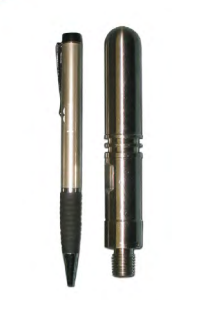

The NeoShort gauge is designed for applications with length limitations.
The most common usage is for building this gauge into other downhole tools, such as water injection and plunger lift equipment. It is also used for general pressure survey for gradient or build up tests.
The total gauge length is only 4.8 inches, including one half AA lithium battery pack. The same easy to use MaxView software is used for programming, downloading and processing data.
