NeoSapphire Memory Gauge
NeoQuartz Memory Gauge
Silicon-Sapphire

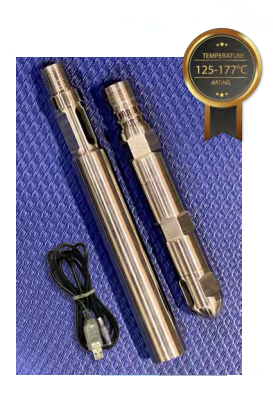

The NeoSapphire electronic downhole gauges are designed
with low costs and easy to use as the main criteria.
Sensor Type
- Silicon-Sapphire
Pressure > Ranges
- Up to - 25,000 PSI.
Pressure > Accuracy
- ±0.03% (full scale).
Pressure > Resolution
- 0.0003%.
Pressure > Drift
- <3 psi / year.
Temperature > Rating
- 125°C(257oF) / 150°C(302°F) / 177°C(351°F)
Temperature > Accuracy
- ±0.5°C
Temperature > Resolution
- 0.01°C
Communications
- USB/RS232
Power Source
- One AA or C lithium pack, 14 VDC for SRO
Memory Capacity
- 4M data sets
Data Set Contents
- Time / pressure / temperature
Sample Rate
- 0.1 second to 18 hours per sample
Outside Diameter
- 0.75”(19.1mm) / 1.0”(25.4mm) / 1.25”(31.8mm)
Overall Length
- 9” (229mm), 11”(279mm)
Housing Material
- Inconel 718 / Stainless Steel 17-4
Sealing
- H2S
About
The NeoSapphire electronic downhole gauges are designed with low costs and easy to use as the main criteria. It can be used as memory gauge or surface readout (SRO) gauge. The gauge also writes data into gauge memory at SRO mode to have data backup and integrity. It can be run by field personnel with limited computer and electronic product knowledge.
The typical applications of this model include slickline gradient and pressure build-up jobs. With a unique low power consumption design, a single C battery can run over a year at regular operations. MaxView and MaxSRO software allows operators to conduct programming, downloading, and reporting very easily.
