NeoSRO Surface Read-Out Gauge
NeoSRO Surface Read-Out Gauge
Silicon-Sapphire
The NeoSapphire electronic downhole gauges are designed
with low costs and easy to use as the main criteria.
Sensor Type
- Silicon-Sapphire
- Quartz
Pressure > Ranges
- Up to - 30,000 PSI.
Pressure > Accuracy
- ±0.03% (full scale).
- ±0.015% (full scale).
Pressure > Resolution
- 0.0003%.
Pressure > Drift
- <3 psi / year.
Temperature > Rating
- 125oC / 150°C / 177°C/200°C
Temperature > Accuracy
- ±0.5°C
- ± 0.15oC
Temperature > Resolution
- 0.01°C
Communications
- USB/RS232
Power Source
- One 1/2 AA lithium pack
Memory Capacity
- 1M data sets
Data Set Contents
- Time / pressure / temperature
Sample Rate
- 0.1 second to any longer period
Outside Diameter
- 0.75”(19.1mm)
Overall Length
- 8” (203 mm))
- 15”(381 mm)
Housing Material
- Inconel 718 / Stainless Steel 17-4
Sealing
- H2S or other sour Conditions
Display Mode
- liquid crystal
Work mode
SRO
About
The NeoSRO product line is designed for real-time pressure and temperature measurements by using a mono-conductor e-line cable.
This model provides cost-effective solutions for oil producers to obtain real-time downhole data.

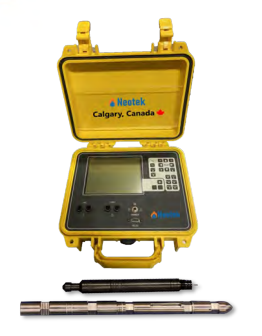

The NeoSRO gauge sends data from downhole to surface on real-time basis. The real-time data are displayed and saved on a surface computer connected to a surface unit from Neotek.
MaxSRO software is provided free of charge for showing data in both graphs and tables as well as conducting other functions. Well depth can be up to 10,000 meters.
