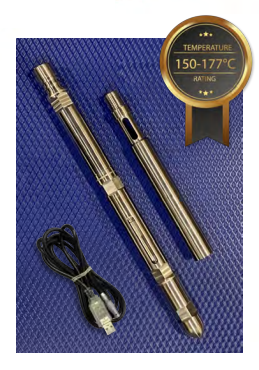

NeoQuartz Memory Gauge
NeoQuartz Memory Gauge
Quartz
The NeoQuartz memory gauges are developed for the criticalwell testing
Sensor Type
- Quartz
Pressure > Ranges
- Up to - 30,000 psi.
Pressure > Accuracy
- ±0.02% (full scale), ±0.015% (full scale) Typically.
Pressure > Resolution
- 0.00006% F.S.
Pressure > Drift
- < 0.02% psi/ year, F.S.
Temperature > Rating
- 150°C (302°F), 177°C (351°F
Temperature > Accuracy
- ±0.2°C
Temperature > Resolution
- 0.01°C
Communications
- USB/RS232
Power Source
- 2AA, CC or 2CC lithium packs
Memory Capacity
- 4M data sets
Data Set Contents
- Time / pressure / temperature
Sample Rate
- 1 second to 18 hours per sample
Outside Diameter
- 0.75”(19.1 mm)/1.27”(32.3mm)
Overall Length
- 23” (584 mm) with 1CC pack
Housing Material
- Inconel 718/MP35N
Sealing
- Metal to Metal and Elastomer
About
The NeoQuartz memory gauges are developed for the critical well testing and are designed to be run by wireline/service personnel with limited computer knowledge or experience in
operating memory gauges.
There is no need to re-program the gauges after every run if customers run the same sample rate. The simple MaxView software allows operators to download data from the gauge and generate a report in pdf or ASCII file very quickly. This model is designed with very low power consumption and fast downloading data by USB interface.
